Connector End View C1046 - Inline

WARNING: This page is about a different car, the 2018 Lincoln Navigator. However, it is still accessible from the selected car via links, so may be relevant.

DESCRIPTION

INLINE

COLOR

BASE PART #

SERVICE PIGTAIL

SEE BELOW

MALE

HARNESS 14A005

FEMALE

HARNESS 3D097

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Qualifier
1	LCD27 (YE-GY)	18
1	LCD27 (YE-GY)	22
2	RCD27 (WH-GN)	18
2	RCD27 (WH-GN)	22
3	VCD10 (BN)	18
3	VCD10 (BN)	22

Pin	Circuit	Gauge	Qualifier
1	LCD27 (YE-GY)	18
2	RCD27 (WH-GN)	18
3	VCD10 (BN)	18

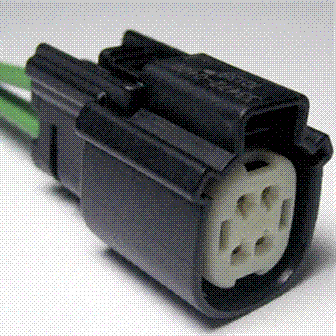

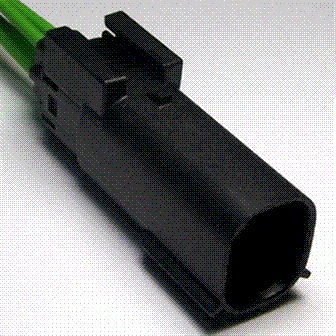

Available Pigtail Kits
Pigtail Kit Part Number WPT-1288 Courtesy of FORD MOTOR COMPANY	Service Part Number: CU2Z-14S411-ZA Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO)
Pigtail Kit Part Number WPT-1570 Courtesy of FORD MOTOR COMPANY	Service Part Number: CU2Z-14S411-ZB Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Actuator - Door Lock - RH - Front Connector - Inline Lamp - Fog/Driving Lamp - Liftgate Applique Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO) Speaker - Siren Switch - Seat Belt Warning
Pigtail Kit Part Number WPT-1498 Courtesy of FORD MOTOR COMPANY	Service Part Number: BU2Z-14S411-TB Gauge: 16 Pin material: Silver Cavities: 4 Vehicle Uses: Connector - Inline Lamp - Headlamp - High/Low Beam Lamp - Park/Turn/Stop Lamp - Reverse Sensor - Catalyst Monitor Sensor - O2 (HEGO/ EGO) Speaker - Siren Speaker - Subwoofer Switch - Heated Seat - LH - Rear Switch - Heated Seat - RH - Rear Valve - Active Exhaust Solenoid
