Sunroof Shade Cable, Removing And Installing: Procedure
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the sliding sunroof frame.
-- Remove the Roof Shade Control Module -J394-.

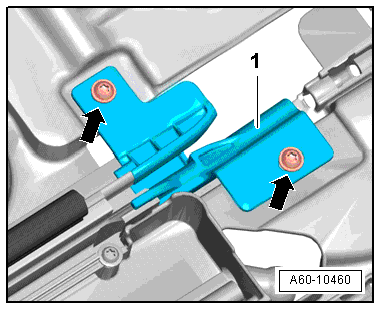

-- Remove the screw -arrow- and remove the stop -1-.
-- Pull the cable to the rear and out of the frame.
-- When installing, make sure the carriers are parallel.
Adjust The Parallel Movement Of The Cables.
- When installing, the new cables must be adjusted parallel to each other.
-- Install the cables on both sides of the frame.
-- Install the stop -1- and tighten the screw.
-- Push the cables on both side all the way to the stop and install the Roof Shade Control Module -J394-.
-- Perform an adaptation. Refer to MOTOR ADAPTATION .
