Sunroof Seals, Removing And Installing, AVANT: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Spray The Seal With Soapy Solution To Make The Installation Easier.

-- Align the seal in the center to the sunroof panel and push it into the both front guides.

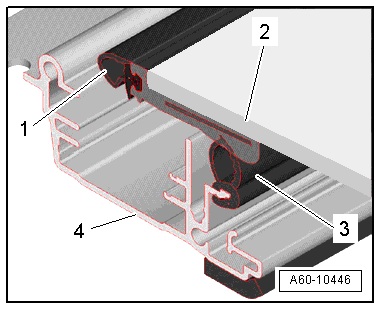

-- Press the seal -1- into the guides and the sunroof panel -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Removing the seal -3- is only possible when removing the sunroof panel >>2<<

Courtesy of AUDI OF AMERICA, LLC

-- Remove the frame -4- to the side.
