Boot, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

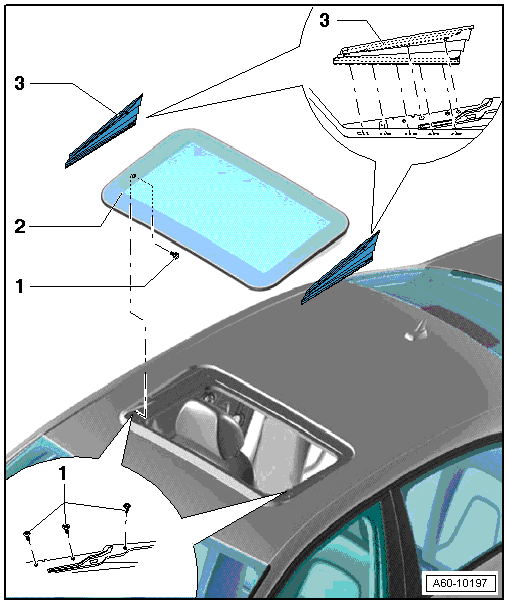

Fig 1: Exploded View Of Boot
GWWA60-10197Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 4 Nm
  2. Sunroof Panel
  3. Boot
    • Remove laterally from the sunroof panel and the frame.
