Sunroof Frame, Removing And Installing, Sedan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

It Is Necessary To Code Or Program The Mechanical Components Or Control Modules On The Panorama Sunroof After Removing And Installing Them Using Guided Functions In Guided Fault Finding Under Diagnostic Address 46 Using The Vehicle Diagnostic Tester.

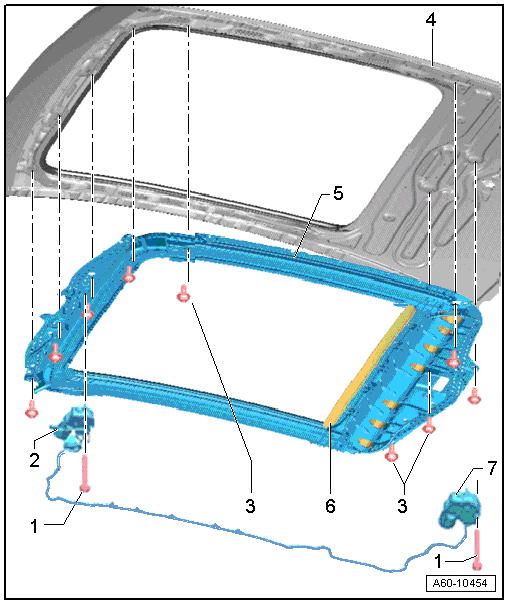

Fig 1: Exploded View Of Sunroof Frame

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3 Nm
Power Sunroof Control Module -J245-
- Performing the adaptation procedure. Refer to MOTOR ADAPTATION .
Bolt
- 8 Nm
Roof
Panorama Sunroof Frame
- Removing
  -- Move the front seat backrests to the rear.

  -- Only lower the headliner. Refer to HEADLINER, REMOVING AND INSTALLING Roof Trim Panels .

  -- Disconnect the connectors.

  -- Remove the front and rear water drain hoses.

  NOTE:
  The Side And Center Screws On The Frame Remain Mounted Until The End.

  Two Technicians Must Hold The Frame Before The Screws Can Be Removed And The Frame Removed.

  -- Remove the screws except for the left and right center screws.

  -- Holding the frame with a second technician, first loosen the center bolts and then lift the frame out through the opening in the roof.
- Installing
  -- Lightly secure the frame with the bolts.

  -- Disconnect the frame at the securing holes using an 8 mm diameter drill bit at the front and rear. Refer to Attaching Points for the Frame .

  -- Tighten the screws first at the front and then at the rear to the tightening specification.

  -- Tighten the screws longitudinally alternating from rear to front to the tightening specification.

  -- Install the front and rear water drain hoses on the frame.
Sun Shade
- Removing. Refer to SUNROOF SHADE, REMOVING AND INSTALLING .
Roof Shade Control Module -J394-
- Performing the adaptation procedure. Refer to MOTOR ADAPTATION .
