Sun Shade, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- The sliding sunroof panel is removed.

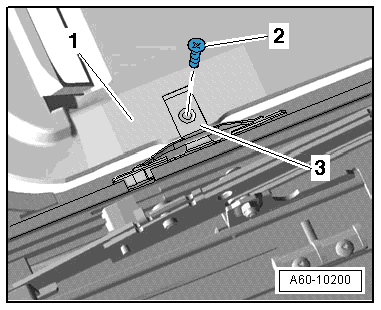

-- Remove the screw -2- for the spring -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Push the headliner -1- slightly to the rear and remove the spring.

Courtesy of AUDI OF AMERICA, LLC

-- Push the spring toward the rear and remove rearward.

-- Remove headliner upward.
