Overview - Panorama Sliding Sunroof, Sedan

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Only The Differences On The Avant Panorama Sliding Sunroof Are Shown.

Removing And Installing The Individual Parts Of The Panorama Sliding Sunroof On The Sedan Is Identical On The Avant Panorama Sunroof.

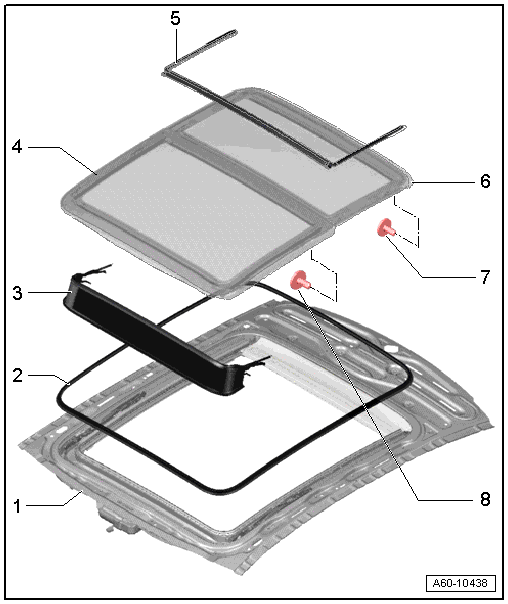

Fig 1: Exploded View Of Panorama Sliding Sunroof (Sedan)

Courtesy of AUDI OF AMERICA, LLC

Panorama Sunroof Frame
- Removing and Installing. Refer to SUNROOF FRAME, REMOVING AND INSTALLING, AVANT .
Seal
- Always replace. Refer to PANORAMA SLIDING SUNROOF SEAL, REMOVING AND INSTALLING .
Wind Deflector
- Removing and Installing. Refer to WIND DEFLECTOR, REMOVING AND INSTALLING, AVANT .
Sunroof Panel >>1<<
- Removing and Installing. Refer to SUNROOF PANEL >>1<< FOR PANORAMA SUNROOF, REMOVING AND INSTALLING, .
Panel Seal
- Removing and Installing. Refer to -item 3- Seal.
Sunroof Panel >>2<<
- Removing and Installing. Refer to SUNROOF PANEL >>2<< FOR PANORAMA SUNROOF, REMOVING AND INSTALLING, .
Bolt
- 3 Nm
Bolt
- 7 Nm
