Release Cable Routing in Vehicle Interior:

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

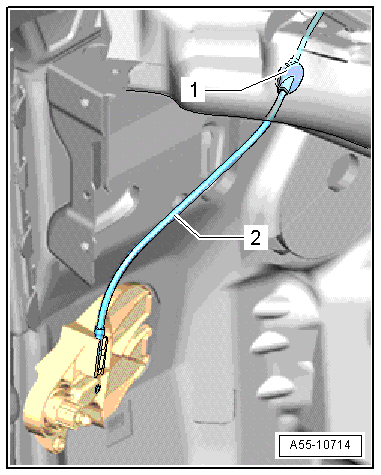

GWWA55-10714Courtesy of AUDI OF AMERICA, LLC

-- Route the release cable -2- along the >>A-pillar<< as shown.

-- Press the grommet -1- onto the >>A-pillar<< from the vehicle interior.
