Rear Final Drive Rear Bearing, Replacing, AWD Vehicles: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The rear bonded rubber bushing for the rear final drive can only be pulled out to the rear and pulled in to the front.
-- Remove the rear final drive. Refer to FINAL DRIVE [For transmission(s) 0BK] .

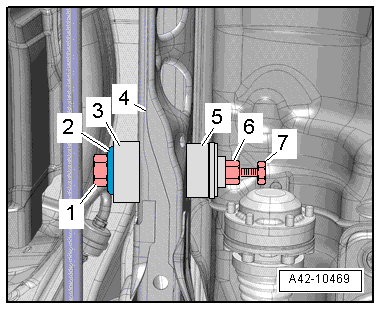

-- Attach the tools to the subframe as illustrated.
- :3346/3
- :3301
- :T40185/2 . Side "A" must face the subframe.
- Subframe
- :T40185/1 . Side "A" must face the subframe.
- Nut
- :T40185/9
-- Remove the bearing from the subframe while turning at the :3346/3 and counterholding at the :T40185/9 .
