SUBFRAME, Securing, Vehicles With AWD

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench 1331 5-50Nm :VAG1331
Torque Wrench 1332 40-200Nm :VAG1332
Engine and Gearbox Jack :VAS6931
Subframe Locating Pins :T40242
Tensioning Strap :T10038

CAUTION:

This procedure contains mandatory replaceable parts. Refer to component overview prior to starting procedure.

Mandatory Replacement Parts

Bolts - Bonded rubber bushing

Certain repairs on a vehicle require the removal of the subframe or the complete rear axle. The original position of the subframe to the body can be maintained with assistance of the :T40242 . The :T40242 must always be installed just before lowering the subframe or the complete rear axle. A road test must be performed after completing repairs. If steering wheel is crooked, vehicle must be aligned VEHICLE ALIGNMENT .

Procedure

-- Place the :VAS6931 under the subframe.

-- Support the rear final drive -1- using a suitable wood block -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Support front of subframe with a suitable wood block -4- under crossmember -3-.

-- Secure the subframe to the :VAS6931 using the :T10038 .

-- Secure the :T10038 under the drive axle and around the subframe and guide it behind the rear final drive and tighten it as illustrated.

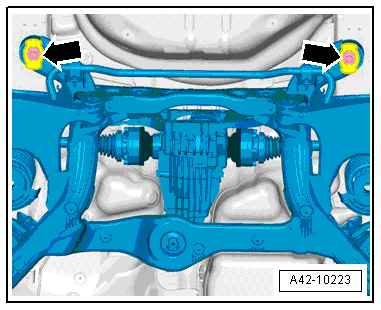

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

-- Pry the stop plate -1- off the bonded rubber bushing alternating from side to side.

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the :T40242 to 20 Nm.

The subframe position is now secured.

The removal of the :T40242 is performed in reverse order.
