Rear Final Drive Assembly Overview: Notes

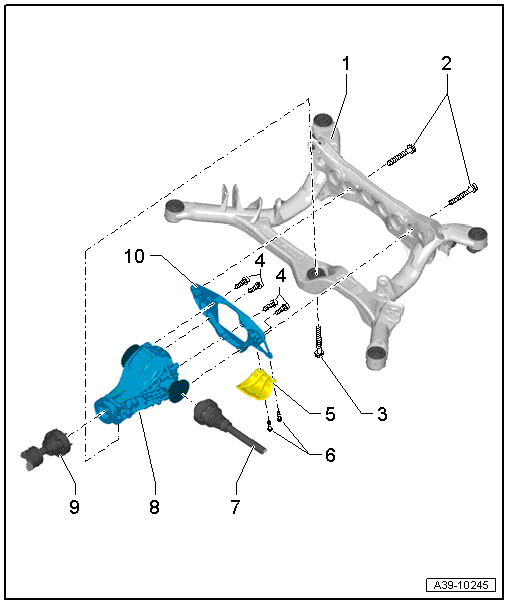

Fig 1: Rear Final Drive Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

Subframe
- Removing and installing, refer to SUBFRAME, SERVICING
Bolt
- 95 Nm
Bolt
- 55 Nm
Bolt
- 55 Nm
Heat Shield
Bolt
- 20 Nm
Drive Axle
- Removing and installing, refer to DRIVE AXLE, REMOVING AND INSTALLING
Rear Final Drive
- Removing and installing, refer to REAR FINAL DRIVE .
- Attaching to the assembly stand, refer to ATTACHING THE REAR FINAL DRIVE TO THE ASSEMBLY STAND .
Driveshaft
- Removing and installing, refer to DRIVESHAFT BOLTED ON TRANSMISSION SIDE and DRIVESHAFT ATTACHED ON TRANSMISSION SIDE .
- Removing from the rear final drive and installing, refer to DRIVESHAFT FROM REAR FINAL DRIVE .
Crossmember
