Seals Component Location Overview, 0BE, 0BF

WARNING: This page is about a different variant/trim than selected.

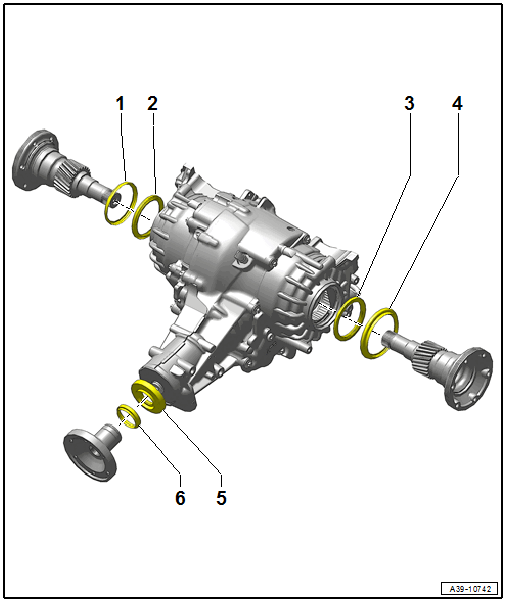

Fig 1: Seals Component Location Overview, 0BE, 0BF

Courtesy of AUDI OF AMERICA, LLC

Right Ring
- Replacing. Refer to FLANGE SHAFT RING, REPLACING, 0BE, 0BF .
Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING, 0BE, 0BF .
Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING, 0BE, 0BF .
Left Ring
- Replacing. Refer to FLANGE SHAFT RING, REPLACING, 0BE, 0BF .
Input Shaft Seal
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
Input Shaft Ring
- Replacing. Refer to FLANGE INPUT SHAFT RING, REPLACING, 0BE, 0BF .
