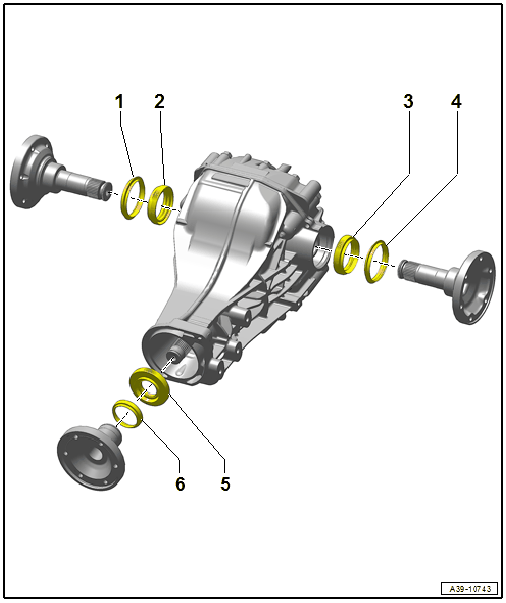

Seals Component Location Overview, 0BC, 0BD
WARNING: This page is about a different variant/trim than selected.
- Right Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Right Seal
- Replacing. Refer to RIGHT SEAL, REPLACING .
- Left Seal
- Replacing. Refer to LEFT SEAL, REPLACING .
- Left Ring
- Replacing. Refer to FLANGE SHAFT PROTECTIVE RING, REPLACING .
- Input Shaft Seal
- Replacing. Refer to INPUT SHAFT SEAL, REPLACING .
- Input Shaft Ring
- Replacing. Refer to FLANGE INPUT SHAFT RING, REPLACING .
