Clutch Slave Cylinder, Removing And Installing: Installing
WARNING: This page is about a different variant/trim than selected.
Install in reverse order of removal. Note the following:
NOTE:
If damaged, replace the O-ring.
If clutch slave cylinder is guided on at an angle, there is the danger that the plunger may be guided past the clutch release lever.

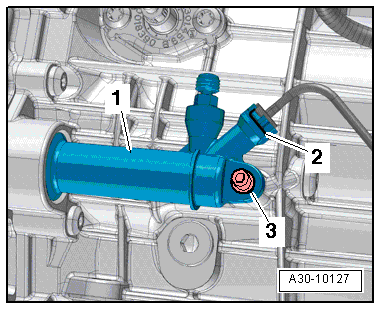

-- Preload the clutch slave cylinder -1- enough that the mounting bolt -3- can be inserted easily. Tightening specification, refer to -item 17- Bolt.
-- Press the clip -2- all the way in.
-- Push the hose/line assembly into clutch slave cylinder until assembly audibly engages.
-- Pull on the hose/line assembly to make sure it is secure.
-- Bleed the clutch system. Refer to CLUTCH MECHANISM, BLEEDING .
-- If equipped install the rear the noise insulation. Refer to NOISE INSULATION .
