Overview - Drain And Inspection Plug For ATF And Gear Oil, Rear Final Drive 0BF And 0BE

WARNING: This page is about a different variant/trim than selected.

Fig 1: Rear Final Drive Gear Oil Drain And Inspection Plugs (0BE, 0BF)

GWWA39-10492

Courtesy of AUDI OF AMERICA, LLC

1- Check plug for gear oil

Tightening specification, refer to -item 22- Gear Oil Check Plug (See Figure).
Always replace.

2- Gear oil drain plug

Tightening specification, refer to -item 16- Oil Drain Plug (See Figure).
Always replace.

Fig 2: Identifying Rear Final Drive Gear Oil Plugs

GWWA39-10490

Courtesy of AUDI OF AMERICA, LLC

1- Check plug for gear oil

Tightening specification, refer to -item 22- Gear Oil Check Plug (See Figure).
Always replace.

2- Gear oil drain plug

Tightening specification, refer to -item 16- Oil Drain Plug (See Figure).
Always replace.

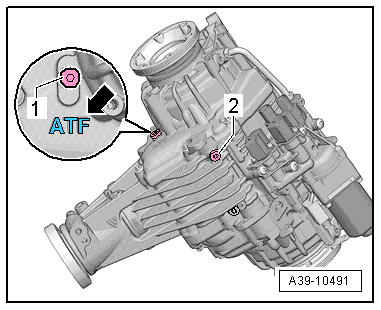

Fig 3: Overview Of ATF Plugs On Rear Final Drive 0BF

GWWA39-10491

Courtesy of AUDI OF AMERICA, LLC

1- ATF check plug

Identification >>ATF<< on the housing -arrow-
Tightening specification, refer to -item 12- ATF Check Plug (See Figure).
Always replace.

2 - ATF drain plug

Tightening specification, refer to -item 15- ATF Drain Plug (See Figure).
Always replace.

Fig 4: Locating ATF Plugs

GWWA39-10489

Courtesy of AUDI OF AMERICA, LLC

1- ATF check plug

Identification >>ATF<< on the final drive housing -arrow-
Tightening specification, refer to -item 12- ATF Check Plug (See Figure).
Always replace.

2 - ATF drain plug

Tightening specification, refer to -item 15- ATF Drain Plug (See Figure).
Always replace.
