Gear Oil On Rear Final Drive 0BF And 0BE, Draining

Special tools and workshop equipment required

• Drip Tray

Rear Final Drive 0BF

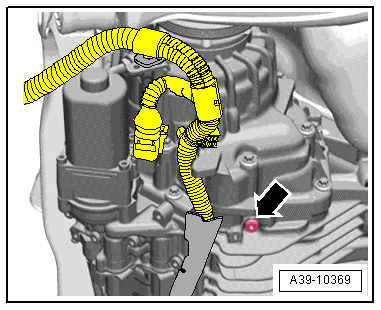

Fig 1: Gear Oil Inspection Plug

Courtesy of AUDI OF AMERICA, LLC

-- Remove the gear oil check plug -arrow-.

-- Remove the drain plug -arrow- and drain the gear oil.

Fig 2: Gear Oil Drain Plug

Courtesy of AUDI OF AMERICA, LLC

Rear Final Drive 0BE

Fig 3: Identifying Rear Final Drive Gear Oil Plugs

Courtesy of AUDI OF AMERICA, LLC

-- Remove the gear oil check plug -1-.

-- Remove the drain plug -arrow- and drain the gear oil.

Fig 4: Gear Oil Drain Plug

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Rear Final Drives

-- Install the new drain plug -arrow- and tighten it. Tightening Specification, refer to -item  16- Oil Drain Plug (See Figure).

• Refer to GEAR OIL IN REAR FINAL DRIVE 0BF, FILLING
• Refer to GEAR OIL IN REAR FINAL DRIVE 0BE, FILLING
