Seat Bench/Single Seat, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Lift floor covering -3- and press in new mounting grommets until they engage audibly in body opening -1-.

-- Place floor covering around mounting grommet as illustrated.

NOTE:

The floor panel, into which the mounting grommets are inserted, and the wire frame of the bench seat must be checked after every disassembly of the rear bench seat and be readjusted in the case of deformation. Refer to FLOOR PANEL FOR REAR BENCH SEAT MOUNTING GROMMETS AND WIRE FRAME, CHECKING AND ALIGNING .

Floor covering -3- must not be on the mounting grommet -2-.

Make sure the seat heating electrical collections slide on and engage audibly.

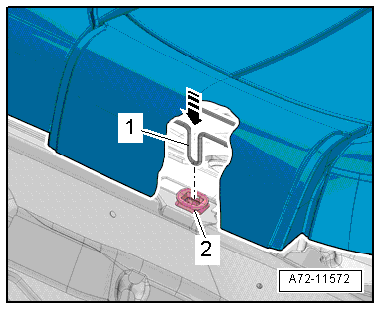

-- Install the rear seat bench and push the wire hook -1- forcefully into the grommets -2- -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the wire hooks are engaged correctly in the grommets.
