Instrument Panel

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

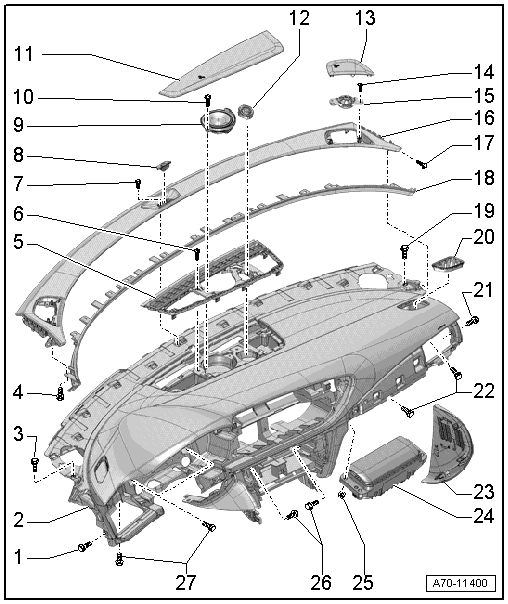

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 3 Nm
Instrument Panel
WARNING:
- Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Note the allocation of the airbag to the instrument panel.
- Removing and installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Bolt
- 1.5 Nm
- Quantity: 12
Defroster Vent in the Center
- Removing and installing. Refer to FRONT CENTER DEFROSTER VENT, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Bolt
- 1.5 Nm
Sunlight Photo Sensor -G107-
- Removing and installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
Center Speaker -R208-
- Equipped on some models
- Removing and installing. Refer to CENTER SPEAKER -R208-, REMOVING AND INSTALLING .
Bolt
- Tightening Specification. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Center Speaker Trim
- Removing and installing. Refer to CENTER SPEAKER TRIM, REMOVING AND INSTALLING .
- First, insert in the front of the instrument panel and press on it until it engages audibly.
Center Speaker 2 -R219-
- Equipped on some models
- Removing and installing. Refer to CENTER SPEAKER 2 -R219-, REMOVING AND INSTALLING, BANG & OLUFSEN .
Side Speaker Trim
- Quantity: 2
- Removing and installing. Refer to SIDE SPEAKER TRIM, REMOVING AND INSTALLING .
- First, insert in the front of the instrument panel and press on it until it engages audibly.
Bolt
- Tightening Specification. Refer to COMPONENT LOCATION OVERVIEW - SOUND SYSTEM .
Left Front Treble Speaker -R20-
- Right: Right Front Treble Speaker -R22-
- Equipped on some models
- Removing and Installing. Refer to LEFT/RIGHT FRONT TREBLE SPEAKER -R20- / -R22-, REMOVING AND INSTALLING .
Upper Instrument Panel Cover
- Removing and installing. Refer to INSTRUMENT PANEL UPPER COVER, REMOVING AND INSTALLING .
Bolt
- 1.5 Nm
- Quantity: 2
Trim Molding
- for the instrument panel cover
- Removing and installing. Refer to INSTRUMENT PANEL UPPER COVER, REMOVING AND INSTALLING .
Bolt
- 3 Nm
Side Defroster Vent
- Removing and installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
- Press on it until it locks
Bolt
- 3 Nm
Screws
- 3 Nm
Side Cover
- For the instrument panel
- Removing and installing. Refer to INSTRUMENT PANEL SIDE COVER, REMOVING AND INSTALLING .
- Press on until it engages audibly
Front Passenger Airbag
- With the Front Passenger Airbag Igniter 1 -N131- and Front Passenger Airbag Release Valve Igniter -N491-
- Market-specific with Front Passenger Airbag Igniter 2 -N132-
  WARNING:
  - Follow all safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
  - Note the allocation of the airbag to the instrument panel.
- Overview. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
- Deactivating and activating possible using the key switch
Nut
- Tightening Specification. Refer to OVERVIEW - FRONT PASSENGER AIRBAG .
Screws
- 3 Nm
Screws
- 3 Nm
