Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the LH quarter trim panel. Refer to Interior Trim and Ornamentation .

2.

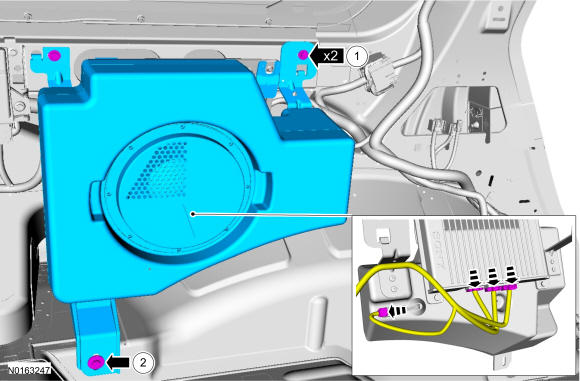

Remove the 3 bolts, the subwoofer speaker and disconnect the electrical connector(s).
1. 1.

  To install, tighten to 7 Nm (62 lb-in).
1. 2.

  To install, tighten to 5 Nm (44 lb-in).

GFD136959

Courtesy of FORD MOTOR COMPANY

3.

To install, reverse the removal procedure.
