Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

1.

Remove the front seat. Refer to Seat - Front .

2.

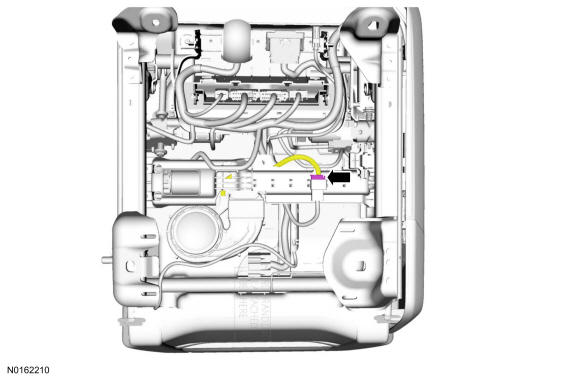

Disconnect the seat cushion TED electrical connector.

GFD137639

Courtesy of FORD MOTOR COMPANY

3.

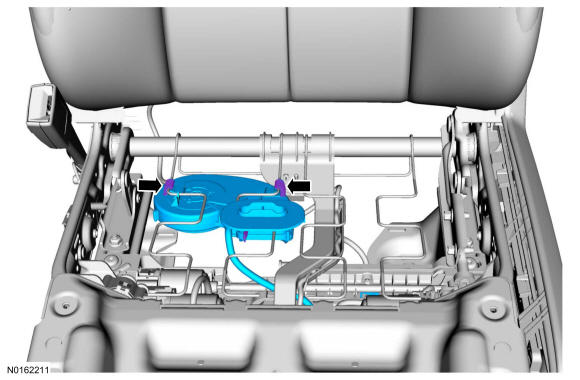

NOTE: Front seat cushion foam removed for clarity.

Detach the locking clips from the seat cushion support springs and remove the seat cushion TED.

GFD137640

Courtesy of FORD MOTOR COMPANY

4.

To install, reverse the removal procedure.
