Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: Driver seat shown, passenger seat similar.

All seats

1.

Remove the front seat. Refer to Seat - Front .

Navigator front seat

2.

Remove the side shield cover from the cushion side shield.
1. 1.

  Release the side shield cover retainers.
1. 2.

  Disconnect the electrical connectors.

GFD137561

Courtesy of FORD MOTOR COMPANY

3.

Remove the cushion side shield front screw.

GFD137554

Courtesy of FORD MOTOR COMPANY

4.

NOTE: For installation, hook the seat cushion cover flap at the rear outboard corner to the cushion side shield.

Remove the cushion side shield.
1. 1.

  Remove the screws.
1. 2.

  Release the pin-type retainer from the seat track.
1. 3.

  Release the seat cushion cover from the cushion side shield.

GFD137601

Courtesy of FORD MOTOR COMPANY

Expedition front seat

5.

If equipped, remove the manual lumbar knob.

GFD137552

Courtesy of FORD MOTOR COMPANY

6.

If equipped, remove the recliner handle.
1. 1.

  Position the recliner handle upward.
1. 2.

  Remove the screw.
1. 3.

  Release the locking tab.

GFD137553

Courtesy of FORD MOTOR COMPANY

7.

Remove the side shield cover front screw.

GFD137554

Courtesy of FORD MOTOR COMPANY

8.

NOTE: Side shield cover with a seat control switch, manual lumbar and recliner shown, others similar.

Remove the side shield cover.
1. 1.

  Pull forward on the front of the side shield cover to release the front retainers.
1. 2.

  Pull outward on the side shield cover to release the side retainers.
1. 3.

  Pull forward to release the side shield cover rear guides.
1. 4.

  If equipped, disconnect the electrical connector(s).

GFD137555

Courtesy of FORD MOTOR COMPANY

9.

NOTE: For installation, hook the seat cushion cover flap at the rear outboard corner to the cushion side shield.

Remove the cushion side shield.
1. 1.

  Remove the screws.
1. 2.

  Release the pin-type retainer from the seat track.
1. 3.

  Release the seat cushion cover from the cushion side shield.

GFD137556

Courtesy of FORD MOTOR COMPANY

All seats

10.

Release the backrest cover lower retainers.

GFD137602

Courtesy of FORD MOTOR COMPANY

11.

Release the hook and loop fastener and position the cushion cover aside.

GFD137605

Courtesy of FORD MOTOR COMPANY

12.

Remove the pin-type retainer and position the outboard side of the cushion cover upward.

GFD137606

Courtesy of FORD MOTOR COMPANY

13.

Position the inboard side of the seat cushion upward.

GFD137607

Courtesy of FORD MOTOR COMPANY

14.

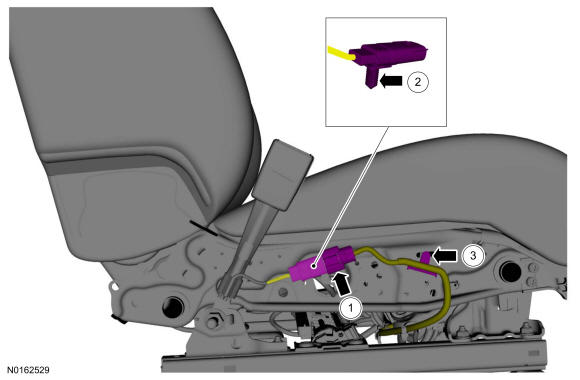

Position the safety belt buckle wire harness aside.
1. 1.

  Disconnect the safety belt buckle electrical connector.
1. 2.

  Release the wire harness connector locator.
1. 3.

  Release the wire harness locator.

GFD137632

Courtesy of FORD MOTOR COMPANY

15.

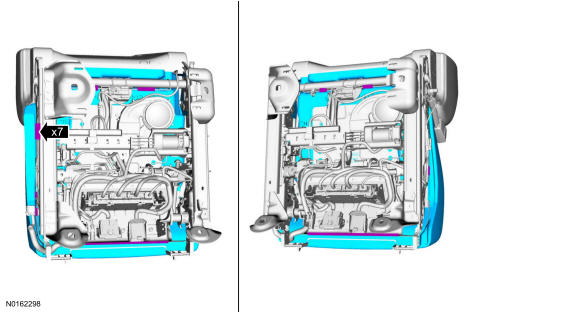

Release the J-clips and remove the cushion cover and foam as an assembly.

GFD137633

Courtesy of FORD MOTOR COMPANY

16.

NOTE: Use care when separating the cushion cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the cushion foam pad.

NOTE: This step is only necessary when installing a new component.

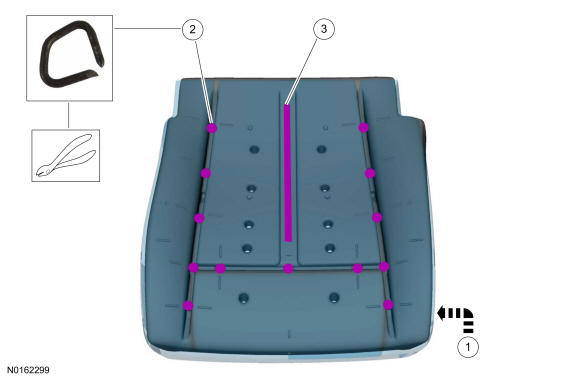

Remove the seat cushion cover from the foam.
1. 1.

  Invert the seat cushion cover.
1. 2.

  Remove the hog rings.
1. 3.

  Release the seat cushion cover hook and loop fastener.

GFD137634

Courtesy of FORD MOTOR COMPANY

17.

To install, reverse the removal procedure.
