Inner Bulb Holder, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Connector Mount

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- Insert a screwdriver -2- into the opening and pry out the cap -1- from the inside in direction of -arrow-.

-- Turn the socket -1- counterclockwise.

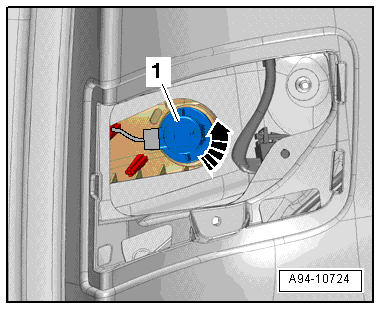

Fig 2: Removing Inner Bulb Holder

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bulb socket from the tail lamp housing.

-- Remove the bulb from the socket.
