Overview - License Plate Lamp

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

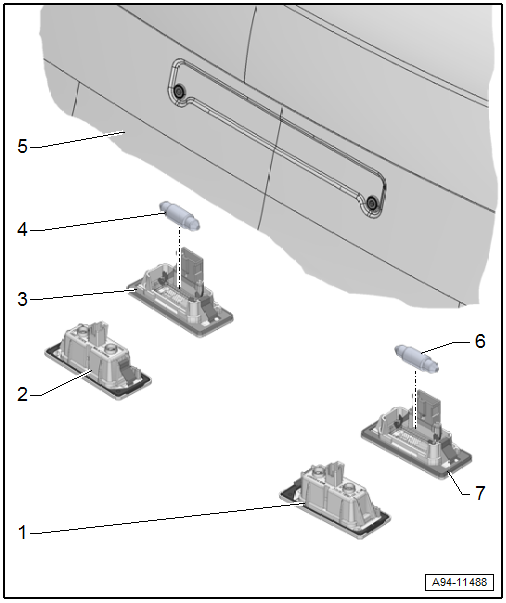

Fig 1: Exploded View Of License Plate Lamp

Courtesy of AUDI OF AMERICA, LLC

Right LED License Plate Lamp
- Removing and installing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING
Left LED License Plate Lamp
- Removing and installing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING
Left License Plate Lamp
- Removing and installing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING
Left License Plate Lamp -X4-
- There are different versions, allocate correct version. Refer to parts information
- 12 V, 5 W
- Bulb, replacing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
Rear Lid
Right License Plate Lamp -X5-
- There are different versions, allocate correct version. Refer to parts information.
- 12 V, 5 W
- Bulb, replacing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .
Right License Plate Lamp
- Removing and installing, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING
