Bulbs For Left/Right License Plate Lamp -X4- / -X5-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

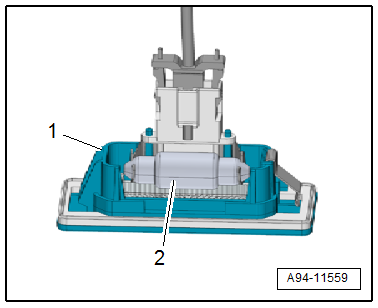

Fig 1: View Of Bulb And License Plate Lamp Clamping Socket
GWWA94-11559Courtesy of AUDI OF AMERICA, LLC

-- Remove the license plate lamp, refer to LEFT/RIGHT LICENSE PLATE LAMP -X4- / -X5-, REMOVING AND INSTALLING .

-- Remove the bulb -2- from the license plate lamp clamping socket -1-.
