Sealing Frame, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Locating Expanding Clips At Lock Carrier Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

-- To remove the expanding clips -arrows-, carefully push the pin -1- to dimension -x- until it audibly engages into the expanding clip -arrow A-.

Dimension -x- = 5 mm.

-- Remove the unlocked expanding clip -2- and the pin.

-- Lift the lock carrier cover -3- and engage it on the radiator grille.

-- Remove bolts -2- and -4-.

Fig 2: Pushing Headlamp Housing Forward

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the bolt -3- three turns.

-- Push the headlamp housing -1- forward all the way in direction of -arrow-.

-- Detach the sealing frame -2- on the top and side of the headlamp housing -1- -arrows- and remove it.

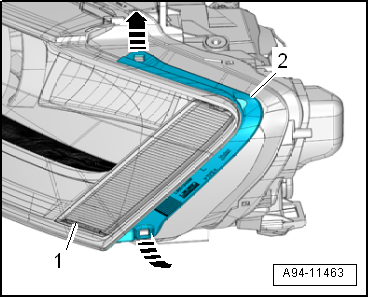

Fig 3: Detaching Sealing Frame From Headlamp Housing
