CUPHOLDER, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

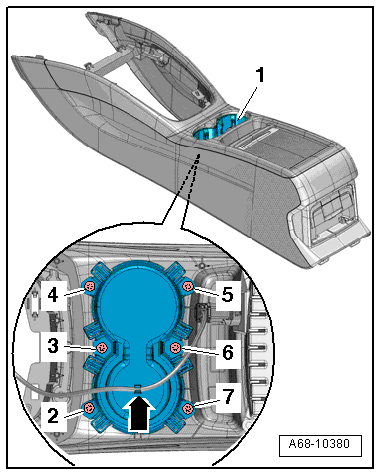

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .
-- Rotate center console.
-- Remove the bolts -2 to 7-.
-- Disengage the wire -arrow- and remove the cupholder -1-.
