Battery, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Luggage Compartment Cargo Floor

Courtesy of AUDI OF AMERICA, LLC

-- Turn off the ignition and remove the key.

-- Remove the luggage compartment floor covering -3-.

-- Remove the dirt tray, if applicable.

-- If equipped, remove the subwoofer -2-, refer to Subwoofer -R211-, REMOVING AND INSTALLING .

-- Fold back the carpet -1- over the cover.

-- Unlock the retaining tabs -arrows- and open the cover -1-.

Fig 2: Press Release Tabs And Open Flap

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The cover is available with varying numbers of retaining clips.

-- Connect the battery charger for battery support mode, refer to Battery Charger VAS5900 SUPPORT MODE .

-- Remove the vehicle tools -2- and the bracket.

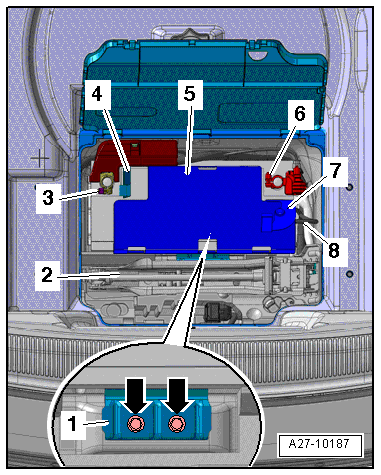

Fig 3: Removing Vehicle Tools, If Applicable, And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Open the cover -7- over the battery negative terminal.

-- Loosen nut -6- a few turns and remove the battery ground cable terminal from the battery terminal.

-- Disconnect the central gas vent hose -8-.

-- Remove the bolts -arrows- on the battery mounting bracket -1-.

NOTE:

Different versions Allocation, refer to parts .

-- Remove the battery -5- slightly from the battery mount.

-- Open the cover -4- over the battery positive terminal.

-- Loosen the nut -3- several turns and remove the battery positive cable terminal with Fuse Panel A -SA- from the battery terminal.

-- Remove battery from luggage compartment.

WARNING:

Pollution risk

Battery and sulfuric acid disposal regulations must be followed when disposing of batteries, refer to WARNINGS AND SAFETY PRECAUTIONS . .
