DTC B2312: Power Window Switch Malfunction [08/2013 - ]: Wiring Diagram

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

for Driver Door

Fig 1: Power Window Switch System Diagram (For Driver Door)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Front Passenger Door

Fig 2: Power Window Switch System Diagram (For Front Passenger Door)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear LH Door

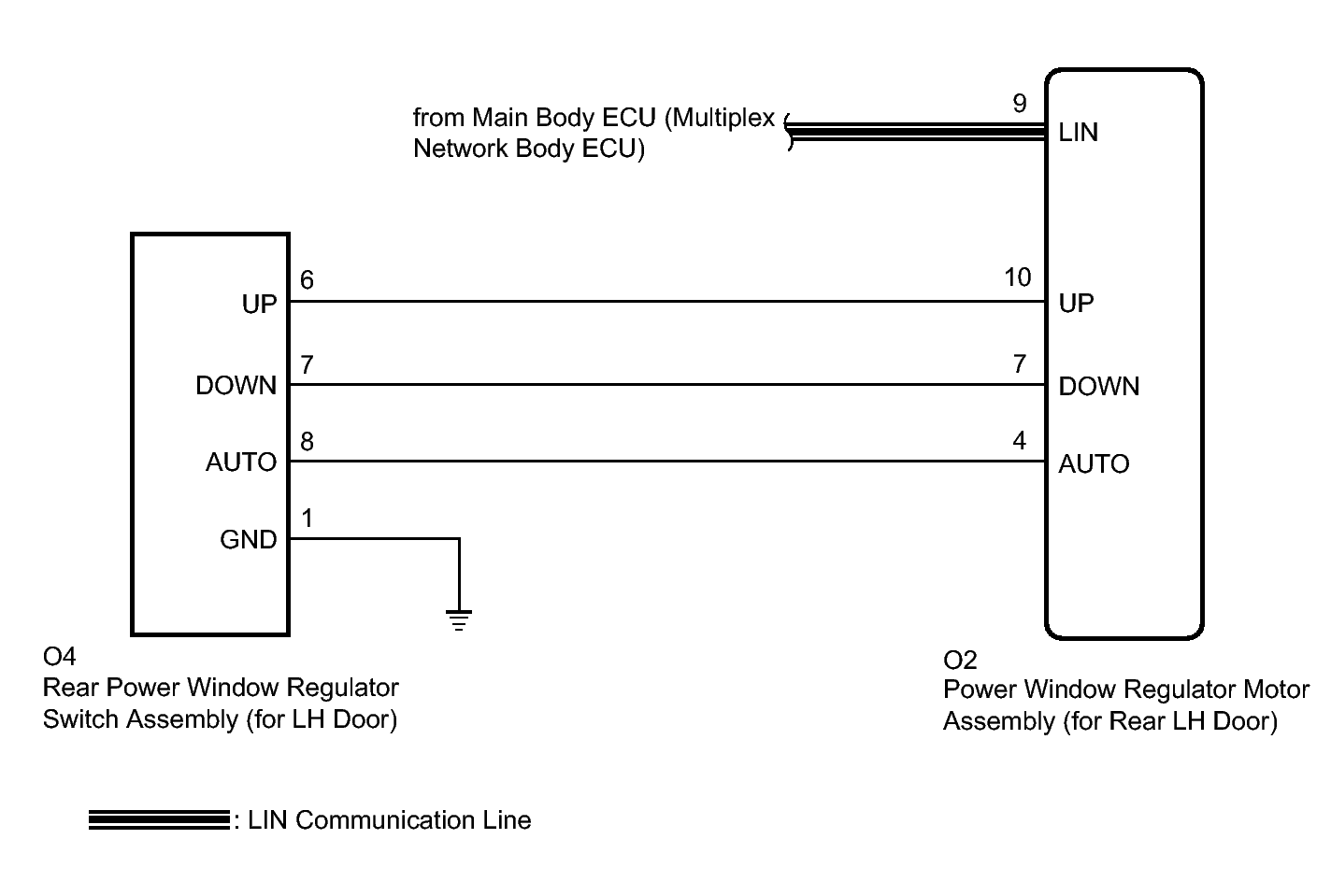

Fig 3: Power Window Switch System Diagram (For Rear LH Door)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear RH Door

Fig 4: Power Window Switch System Diagram (For Rear RH Door)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
