Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ROOF CONSOLE BOX ASSEMBLY
    1. Using a molding remover, disengage the 4 clips.

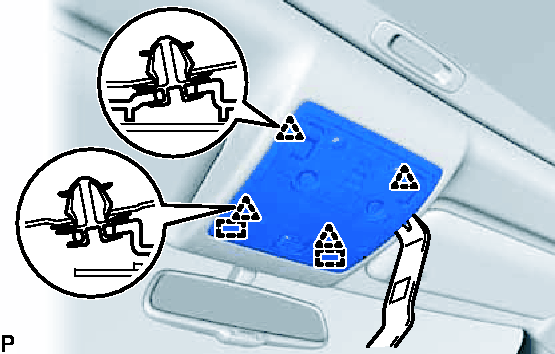

      Fig 1: Identifying Clips Location
      GTY408980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides.
    3. Disconnect the connector and remove the roof console box assembly.
  2. REMOVE BULB ASSEMBLY
    1. Turn the 3 bulb assemblies in the direction indicated by the arrows in the illustration and remove them.

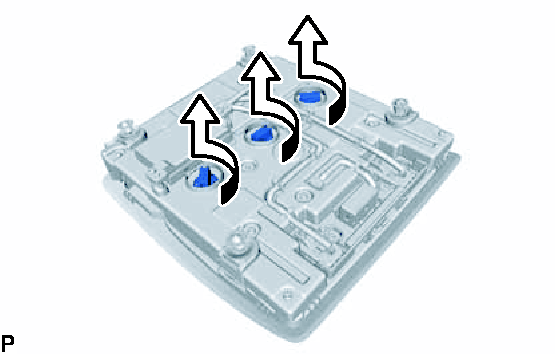

      Fig 2: Identifying Bulb Locations
      GTY408985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE MAP LIGHT BULB
    1. Remove the 3 map light bulbs from the 3 map light sockets.
