Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE STOP LIGHT SWITCH ASSEMBLY
1. Disconnect the connector.

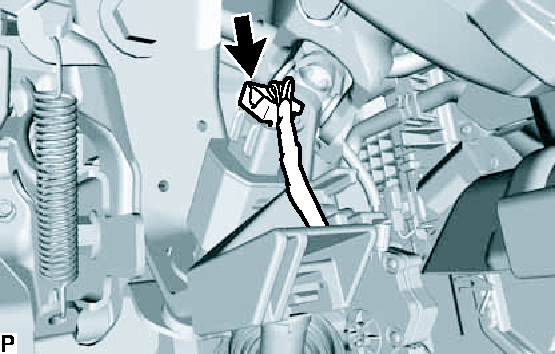

  Fig 1: Identifying Stop Light Switch Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the stop light switch assembly counterclockwise and remove it.

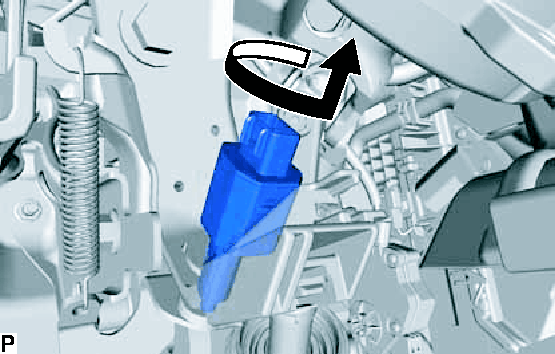

  Fig 2: Removing Stop Light Switch Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
