Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the RH and LH sides.
The procedure described below is for the LH side.

REMOVE OUTER MIRROR . Refer to REMOVAL [08/2013 - ] - Step 1
REMOVE SIDE TURN SIGNAL LIGHT ASSEMBLY
1. Remove the 5 screws.
2. Disengage the 2 claws and 4 guides and remove the visor assembly.

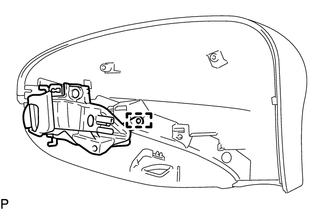

  Fig 1: Identifying No. 2 Outer Mirror Cover Screws, Claws And Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 guides.

  Fig 2: Identifying No. 2 Outer Mirror Cover Guides
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disconnect the connector and remove the No. 2 outer mirror cover with side turn signal light assembly.

  Fig 3: Identifying Signal Light Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disengage the guide and remove the side turn signal light assembly from the No. 2 outer mirror cover.

  Fig 4: Identifying Side Turn Signal Light Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
