Reassembly [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL FOG LIGHT BULB (for Halogen Fog Light)
1. Turn the fog light bulb in the direction indicated by the arrow shown in the illustration to install it.

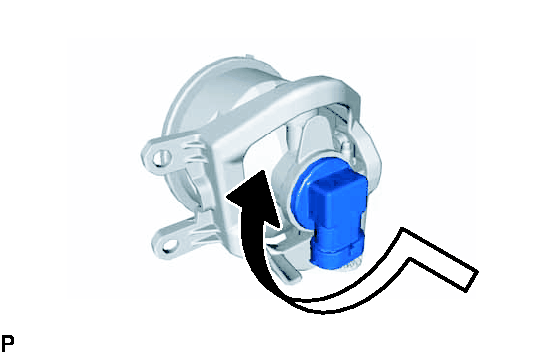

  Fig 1: Identifying Fog Light Bulb
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not touch the bulb glass.
