Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL RH
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

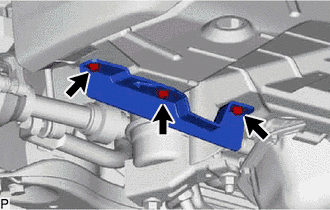

1. Remove the 3 screws and front wheel opening extension pad RH.

  Fig 1: Identifying Front Wheel Opening Extension Pad RH Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT FENDER LINER RH

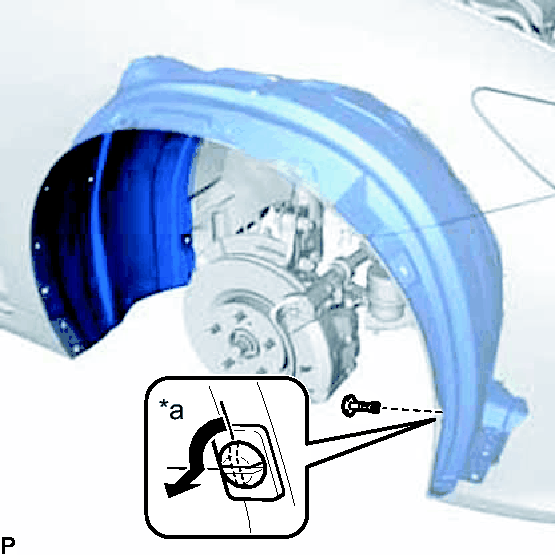

1. Using a screwdriver, turn the pin 90 degrees counterclockwise and remove the pin hold clip.

  Fig 2: Identifying Front Fender Liner RH Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a 90°

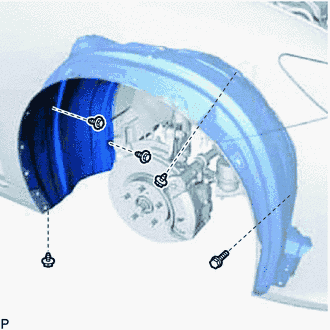

2. Remove the 4 screws and bolt.

  Fig 3: Identifying Front Fender Liner RH Bolt And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 6 clips.

  Fig 4: Identifying Front Fender Liner RH Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

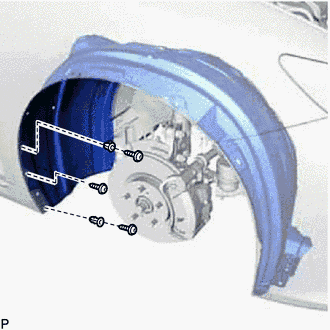

4. Using a 4 mm hexagon wrench, remove the 3 hexagon screws.

  Fig 5: Identifying Front Fender Liner RH Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 grommets and front fender liner RH.
  HINT:

  The grommets need to be replaced with new ones because they will break when they are removed.
DRAIN WASHER FLUID

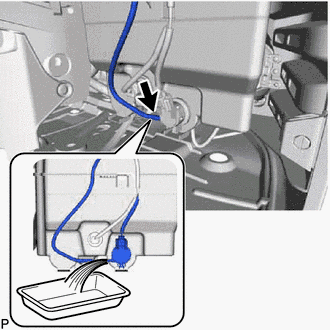

1. Disconnect the washer hose from the windshield washer motor and pump assembly, and drain the washer fluid.

  Fig 6: Draining Washer Fluid
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use a container to collect the washer fluid.
REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY

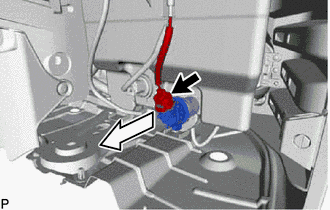

1. Disconnect the connector.

  Fig 7: Identifying Windshield Washer Motor And Pump Assembly Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the windshield washer motor and pump assembly as shown in the illustration.
