On-Vehicle Inspection [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT WINDSHIELD WIPER MOTOR ASSEMBLY

for LH Side:

Check the stop (park) position.

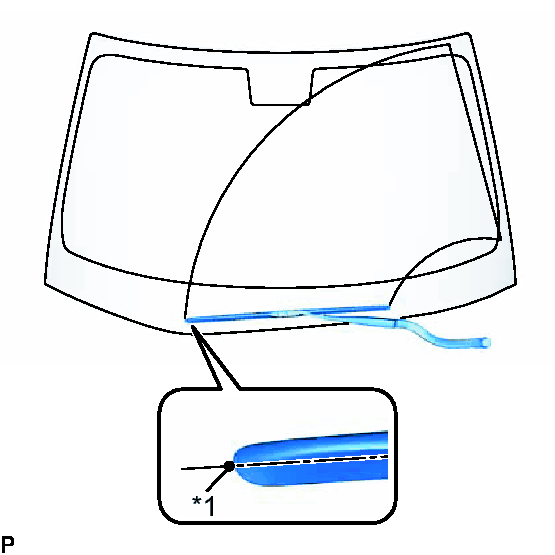

Fig 1: Identifying Windshield Wiper Stop Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Operate the windshield wiper motor assembly.
Stop the windshield wiper motor assembly operation.

Check the automatic stop (park) position.

HINT:

After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.

The front wiper stops at the position shown in the illustration.

TEXT IN ILLUSTRATION

*1	Ceramic Dot

for RH Side:

Operate the windshield wiper motor assembly.

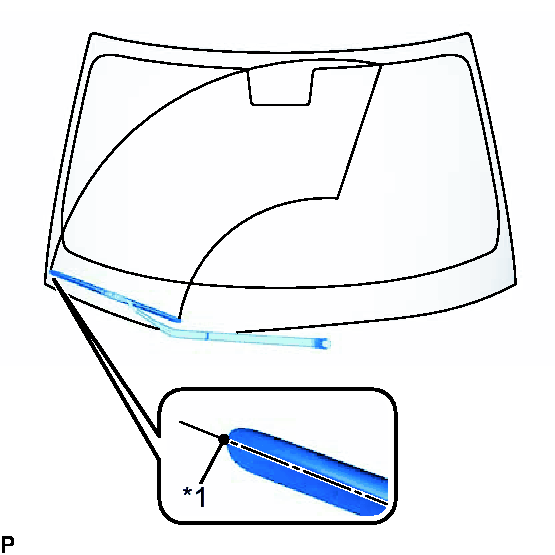

Fig 2: Identifying Windshield Wiper Stop Position
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Stop the windshield wiper motor assembly operation.

Check the automatic stop (park) position.

HINT:

After the front wiper motor is stopped, check the automatic stop position after lifting the wiper blade 2 times.

The front wiper stops at the position shown in the illustration.

TEXT IN ILLUSTRATION

*1	Ceramic Dot
