Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the RH side and LH side.
The following procedure is for the LH side.

REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY
Refer to DISASSEMBLY [08/2013 - ]
REMOVE SEAT MEMORY SWITCH
1. Disengage the 4 claws to remove the seat memory switch from the front door trim board sub-assembly.

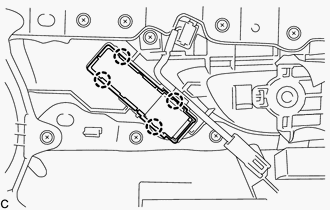

  Fig 1: Identifying Seat Memory Switch & Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
