Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL  See step  14
  2. REMOVE CONSOLE PANEL SUB-ASSEMBLY  See step  2
  3. REMOVE COMBINATION SWITCH ASSEMBLY
    1. Disengage the 4 claws to remove the combination switch assembly from the console panel sub-assembly.

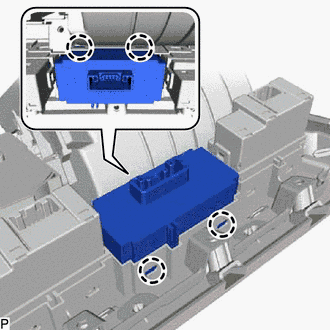

      Fig 1: Identifying Combination Switch Assembly Claws
      GTY419019Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
