Installing crankshaft bearing cap
WARNING: This page is about a different car, the 2006 Audi A4, 2005 Audi A4, 2004 Audi A4, 2003 Audi A4, and 2002 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.

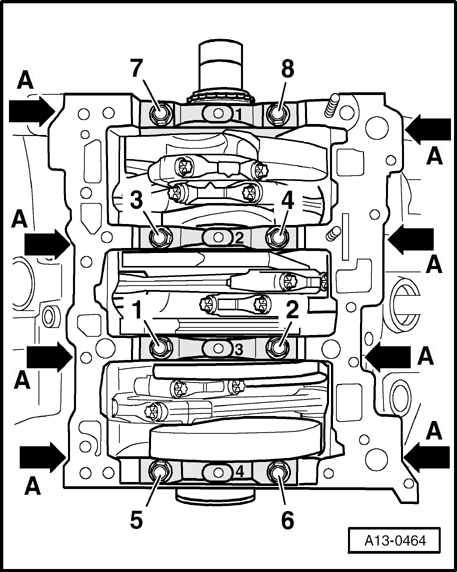

- Replace bolts -A- and nuts -1- to -8-.
- Inserting alignment bushings into cylinder block
- Tighten bearing cap nuts or bolts in following sequence:
1. - Screw in bolts -A- hand tight.
2. - Tighten nuts -1- to -8- to 35 Nm.
3. - Tighten nuts -1- to -8- 90° (1/4 turn) further using rigid wrench.
4. - Tighten bolts -A- to 20 Nm.
5. - Tighten bolts -A- 90° (1/4 turn) further using rigid wrench.
