On-Vehicle Inspection [08/2013 - ]
WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT HOOD SUB-ASSEMBLY

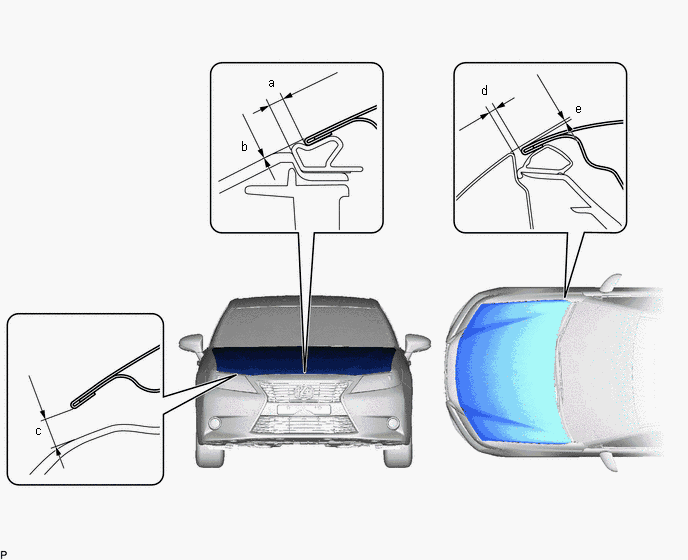

- Check that the clearance measurements of areas "a" through "e" are within each standard range.STANDARD CLEARANCE
Area Measurement Area Measurement a 2.35 to 5.35 mm (0.0925 to 0.211 in.) b -1.4 to 1.6 mm (-0.0551 to 0.063 in.) c 8.70 mm (0.343 in.) d 2.0 to 5.0 mm (0.0787 to 0.197 in.) e -1.4 to 1.6 mm (-0.0551 to 0.063 in.) - -
- Check that the clearance measurements of areas "a" through "e" are within each standard range.
