Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT  See step  5
  2. REMOVE SPARE WHEEL COVER PAD LH (for Full Size Spare Tire)  See step  6
  3. REMOVE SPARE WHEEL COVER PAD RH (for Full Size Spare Tire)  See step  7
  4. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for Rear Side)  See step  8
  5. REMOVE REAR FLOOR FINISH PLATE  See step  9
  6. REMOVE LUGGAGE COMPARTMENT FRONT TRIM COVER  See step  10
  7. REMOVE LUGGAGE HOLD BELT STRIKER ASSEMBLY (for LH Side)  See step  11
  8. REMOVE ROPE HOOK  See step  12
  9. REMOVE LUGGAGE COMPARTMENT INNER TRIM COVER LH  See step  13
  10. REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY
    1. Disengage the 2 claws.

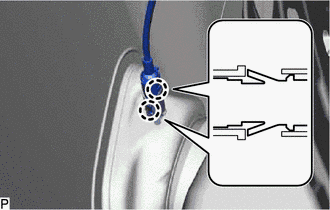

      Fig 1: Identifying Fuel Lid Lock With Motor Assembly Claws
      GTY413151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the nut and disconnect the fuel lid lock with motor assembly.

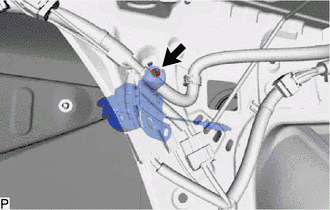

      Fig 2: Identifying Fuel Lid Lock With Motor Assembly Nut
      GTY419681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the clamp.
      Fig 3: Identifying Fuel Lid Lock With Motor Assembly Clamp
      GTY413153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the connector and remove the fuel lid lock with motor assembly.
