Removal [08/2013 - ]

HINT:

• Use the same procedure for the LH side and RH side.
• The following procedure is for the LH side.

1. REMOVE NO. 2 ROCKER PANEL MOLDING PROTECTOR  See step  1
2. REMOVE ROCKER PANEL MOLDING ASSEMBLY

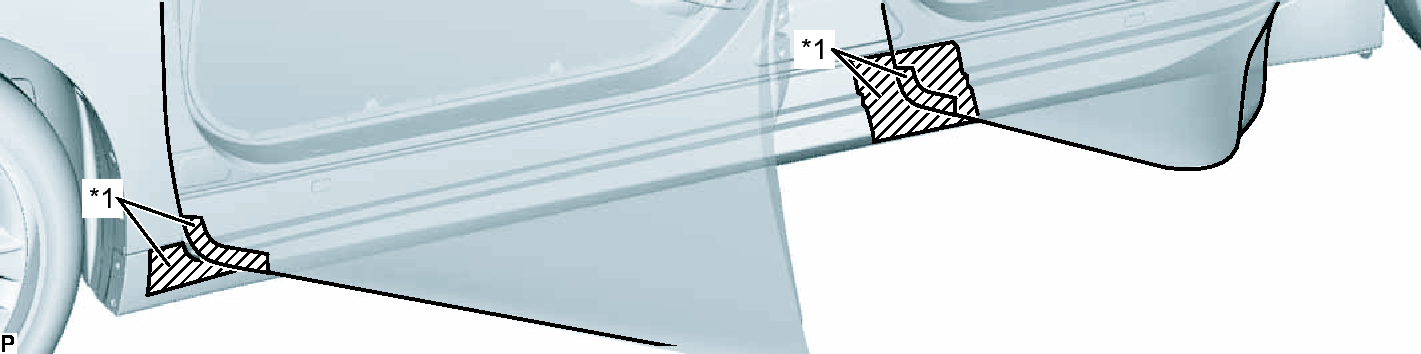

   1. Put protective tape around the rocker panel molding assembly and door.
      Fig 1: Putting Protective Tape Around Rocker Panel Molding

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1

      Protective Tape

      -

      -

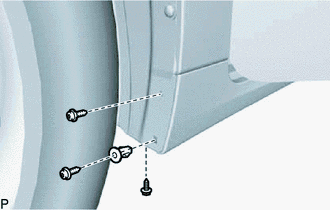

   2. Using a 4 mm hexagon wrench, remove the 2 hexagon screws and grommet.
      Fig 2: Identifying Rocker Panel Molding Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the screw.

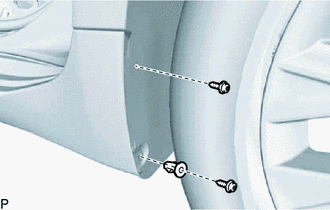

   4. Using a 4 mm hexagon wrench, remove the 2 hexagon screws and grommet.
      Fig 3: Identifying Rocker Panel Molding Assembly Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

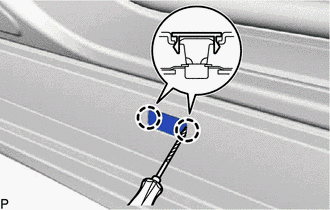

   5. Disengage the 2 claws and remove the rocker panel molding cover.
      Fig 4: Removing Rocker Panel Molding Cover

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the front side and rear side.

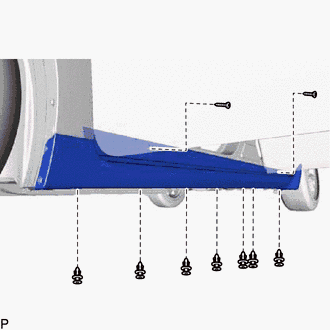

   6. Remove the 2 screws.
      Fig 5: Identifying Rocker Panel Molding Assembly Screws And Clips

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

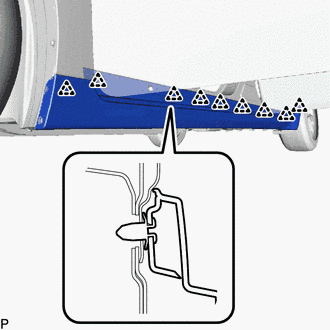

   7. Remove the 7 clips.
   8. Disengage the 9 clips and remove the rocker panel molding assembly.
      Fig 6: Removing Rocker Panel Molding Assembly

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   9. Remove the 9 clips from the rocker panel molding assembly.
