Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Use the same procedure for the LH side and RH side.
The following procedure is for the LH side.

INSTALL ROCKER PANEL MOLDING ASSEMBLY
1. Install 9 new clips to the rocker panel molding assembly.
2. Engage the 9 clips.
3. Install the 7 clips.
4. Install the 2 screws.
5. Engage the 2 claws to install the rocker panel molding cover.

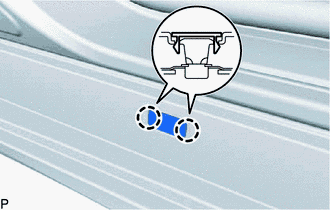

  Fig 1: Installing Rocker Panel Molding Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  Use the same procedure for the front side and rear side.
6. Install 2 new grommets.
7. Using a 4 mm hexagon wrench, install the 4 hexagon screws.
8. Install the rocker panel molding assembly with the screw.
INSTALL NO. 2 ROCKER PANEL MOLDING PROTECTOR See step 1
