Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR SPOILER SUB-ASSEMBLY

HINT:

When installing a new rear spoiler sub-assembly, heat the vehicle body and rear spoiler sub-assembly using a heat light.

Heating Temperature

Item	Temperature
Vehicle Body	40 to 60°C (104 to 140°F)
Rear Spoiler Sub-assembly	20 to 30°C (68 to 86°F)

NOTE:

Do not heat the vehicle body or rear spoiler sub-assembly excessively.

Clean the vehicle body surface.
1. Using a heat light, heat the vehicle body surface.
2. Remove the double-sided tape from the vehicle body.
3. Wipe off any tape adhesive residue with cleaner.
Install the rear spoiler sub-assembly.
1. Using a heat light, heat the vehicle body and a new rear spoiler sub-assembly.
2. Remove the release paper from the rear spoiler sub-assembly.
  HINT:

  After removing the release paper, keep the exposed adhesive free from foreign matter.
3. Engage the 3 clips.

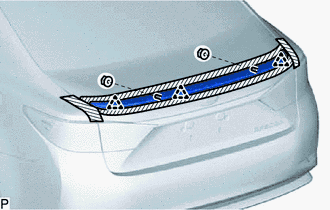

  Fig 1: Identifying Rear Spoiler Sub-Assembly With Nuts And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the new rear spoiler sub-assembly with the 2 nuts.

INSTALL LUGGAGE COMPARTMENT DOOR COVER . Refer to REASSEMBLY [08/2013 - ] - Step 26
INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP . Refer to REASSEMBLY [08/2013 - ] - Step 27
INSTALL LUGGAGE COMPARTMENT DOOR INSIDE HANDLE . Refer to REASSEMBLY [08/2013 - ] - Step 28
INSTALL LUGGAGE LOCK CONTROL CABLE PLATE . Refer to REASSEMBLY [08/2013 - ] - Step 29
