Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY . Refer to REMOVAL [08/2013 - ] - Step 21
REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY
1. Disconnect the camshaft timing oil control valve assembly connector.

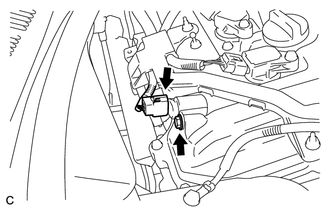

  Fig 1: Identifying Oil Control Valve Connector And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt and camshaft timing oil control valve assembly.
3. Remove the O-ring from the camshaft timing oil control valve assembly.

  Fig 2: Identifying O-Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 O-ring
