Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL QUICK HEATER ASSEMBLY
1. Insert the quick heater assembly as shown in the illustration.

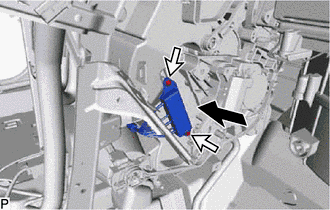

  Fig 1: Installing Quick Heater Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the quick heater assembly with the 2 screws.
3. Engage the 5 clamps.
4. Connect the connector.
5. Install the bolt.
  Torque: 20 N*m (199 kgf*cm, 14 ft.*lbf)
INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY See step 5
INSTALL SHIFT LEVER SUPPORT
Refer to INSTALLATION [08/2013 - ]
INSTALL INSTRUMENT PANEL SAFETY PAD ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
