WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

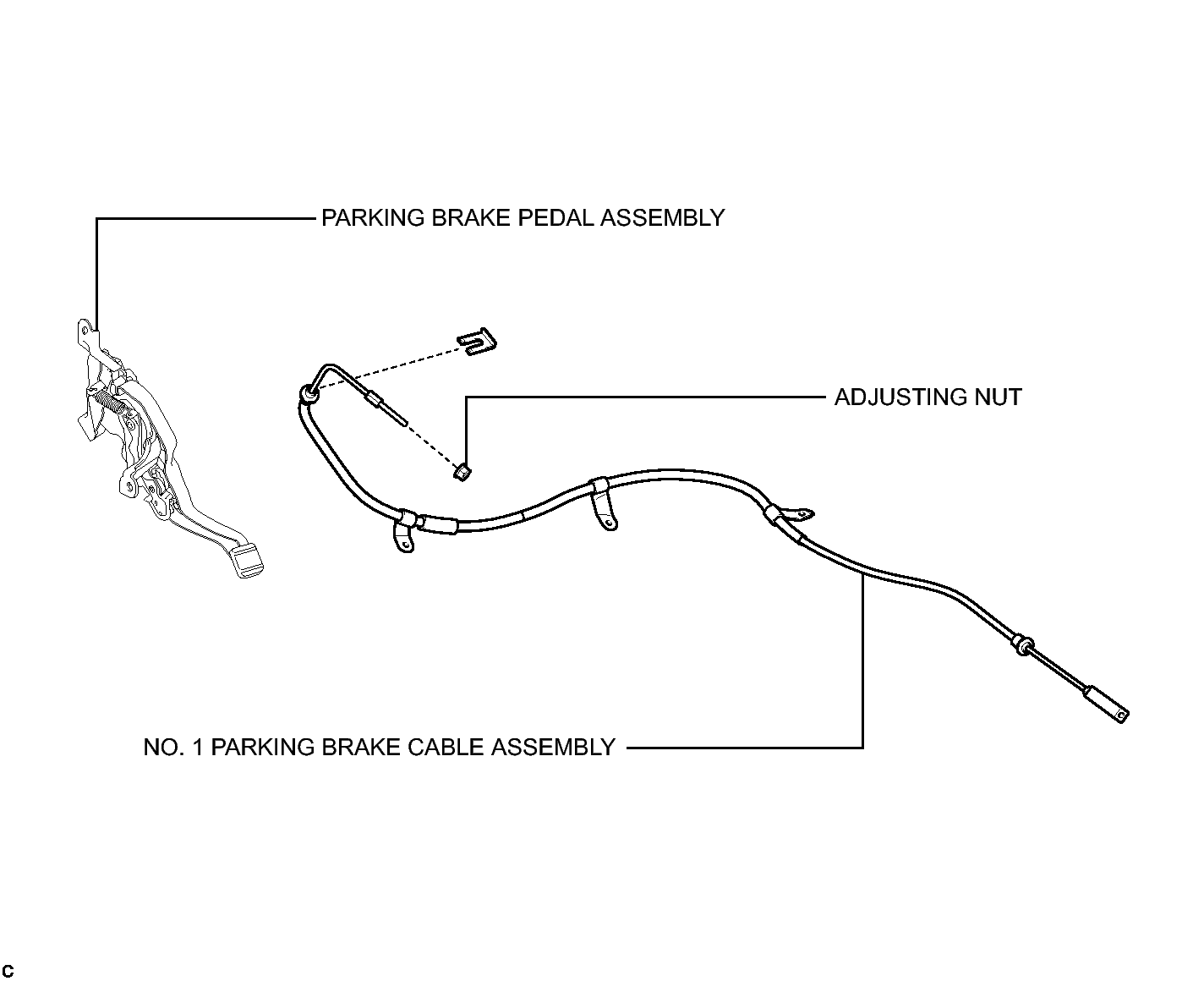

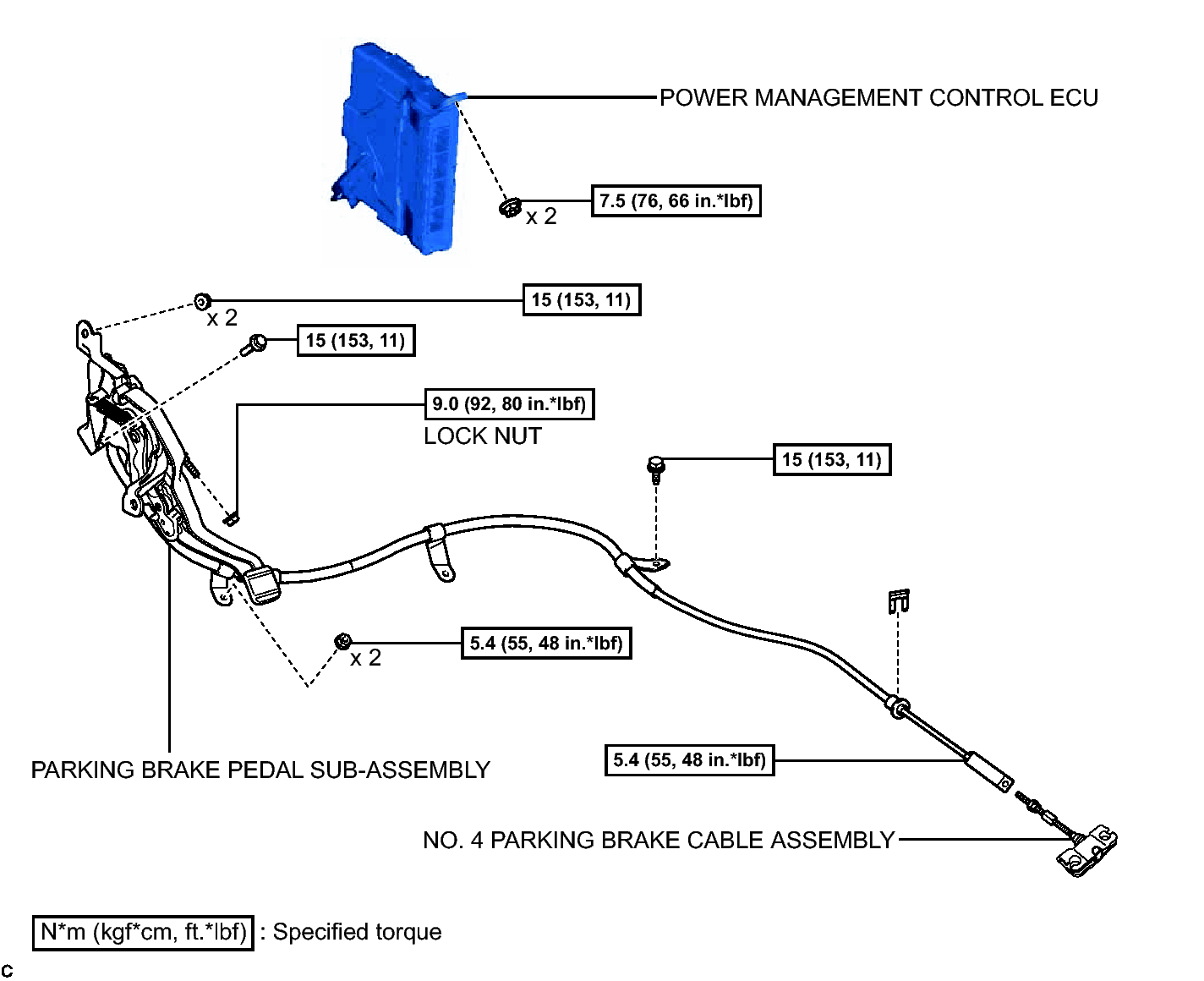

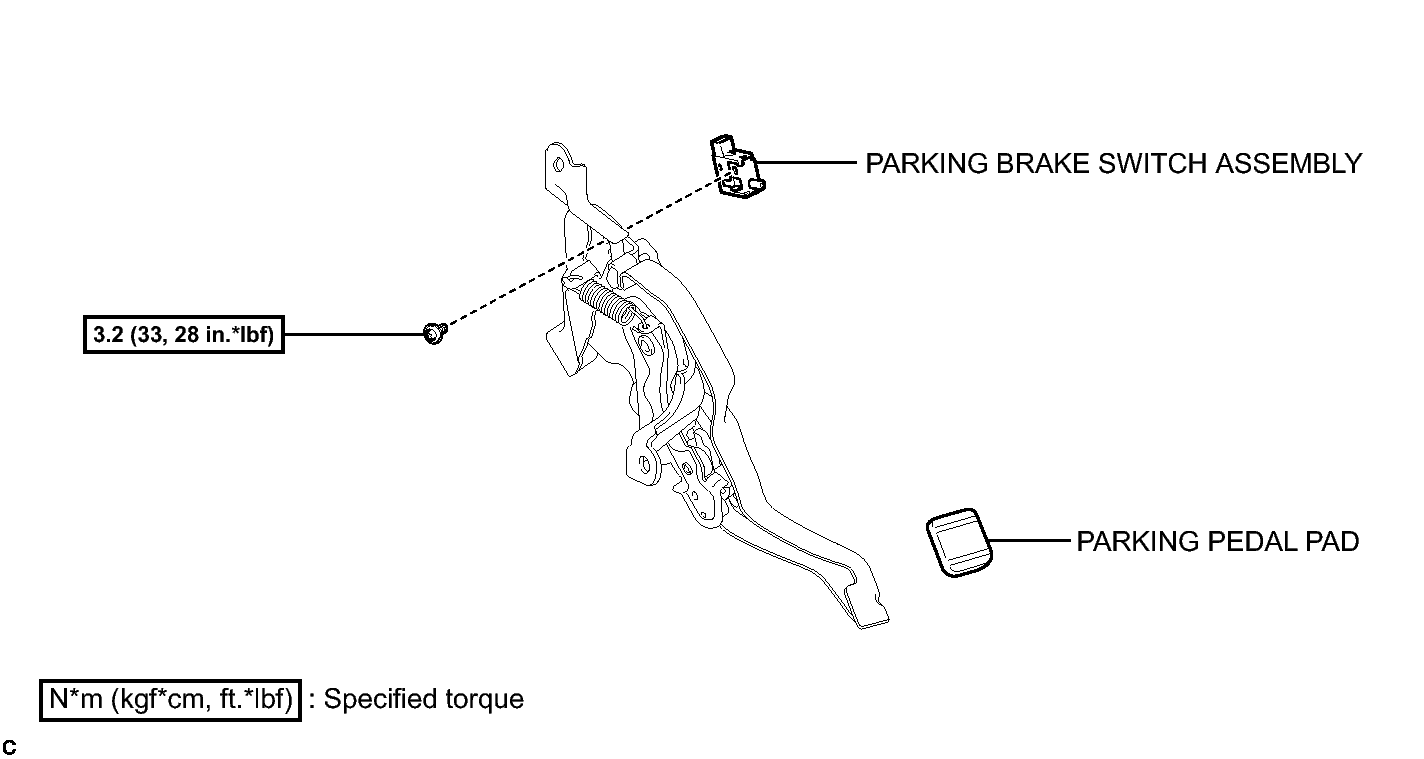

Fig 1: Identifying Parking Brake Pedal Replacement Components With Torque Specifications (1 Of 4)
