Installation [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL EGR COOLER ASSEMBLY
1. Temporarily install 2 new gaskets and the EGR cooler assembly with the bolt (A) and nut (A).

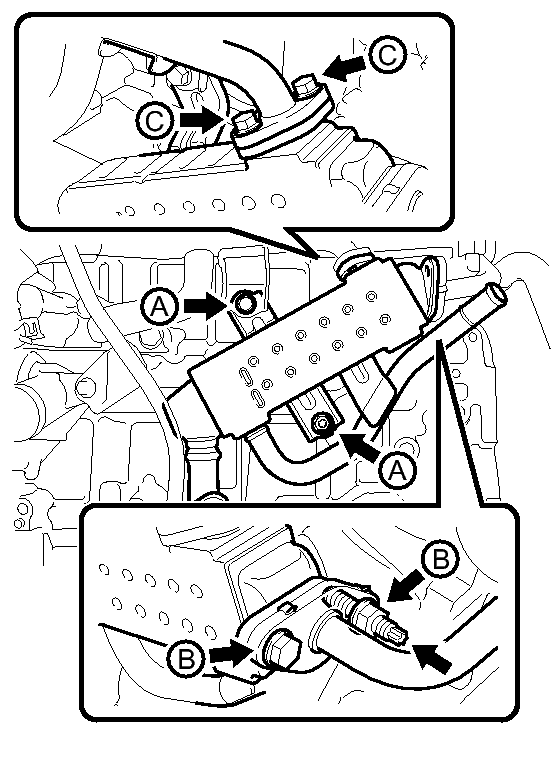

  Fig 1: Installing EGR Cooler Assembly Bolts And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an E8 "TORX" socket wrench, install the stud bolt.
  Torque: 7.0 N*m (71 kgf*cm, 62 in.*lbf)
3. Temporarily install the bolt (B) and nut (B).
4. Temporarily install the 2 bolts (C).
5. Tighten the 4 bolts and 2 nuts.
  Bolt (A) and Nut (A)

  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Bolt (B) and Nut (B)

  Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

  Bolt (C)

  Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

  NOTE:
  Make sure that all installation surfaces of the EGR cooler assembly are in even contact when tightening the bolts and nuts.
6. Connect the water by-pass hose to the EGR cooler assembly.
INSTALL EXHAUST MANIFOLD CONVERTER SUB-ASSEMBLY
Refer to INSTALLATION [08/2013 - ]
