Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [08/2013 - ]
REMOVE INVERTER TRAY BRACKET SUB-ASSEMBLY
1. Remove the 4 bolts and inverter tray bracket sub-assembly from the body.

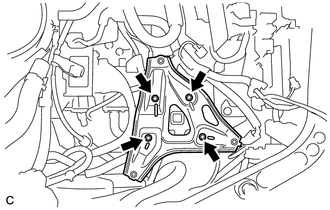

  Fig 1: Identifying Inverter Tray Bracket Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR CABLE
1. Remove the 4 bolts and generator cable from the hybrid vehicle transaxle assembly.

  Fig 2: Identifying Generator Cable Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
