Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE STEERING PAD
Refer to REMOVAL [08/2013 - ]
REMOVE CRUISE CONTROL MAIN SWITCH
1. Remove the 2 screws.

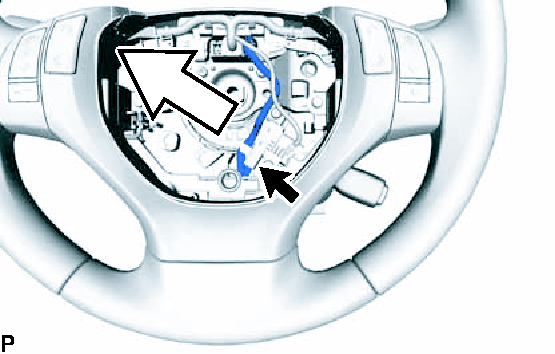

  Fig 1: Identifying Cruise Control Main Switch Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the connector and remove the cruise control main switch as shown in the illustration.

  Fig 2: Identifying Cruise Control Main Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
