Rearview Camera System Control Module -J772-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Open Right Luggage Compartment Storage Bin.

The Rearview Camera System Control Module -J772- -3- Is Clipped Into The Bracket -2-.

Fig 1: Identifying Bracket From Storage Compartment In Order To Disconnect Connectors, Removal

Courtesy of AUDI OF AMERICA, LLC

Remove the Comfort System Central Control Module -J393- -1- first, and then the bracket -2-.

The connectors on the Comfort System Central Control Module -J393- are not disconnected.

-- Remove the screws -arrows- and nuts -5-.

-- Remove the bracket -2- from the storage compartment in order to disconnect the connectors -3- and -4-.

Fig 2: Identifying Bracket From Storage Compartment In Order To Disconnect Connectors, Removal

Courtesy of AUDI OF AMERICA, LLC

-- Unclip Rearview Camera System Control Module -J772- out of the bracket -2- and remove it upward.

-- Open Right Luggage Compartment Storage Bin.

The Rearview Camera System Control Module -J772- -2- is attached to the rear bracket -1-.

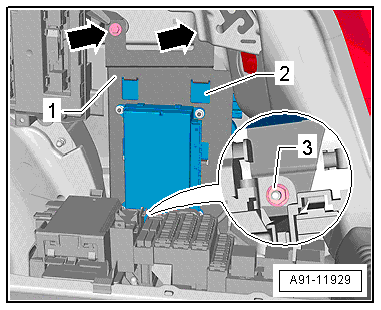

Fig 1: Identifying Rearview Camera System Control Module -2- Is Attached To Rear Bracket -1

Courtesy of AUDI OF AMERICA, LLC

To remove it, the bracket -1- must first be removed.

-- Remove the screws -arrows- and nuts -3-.

-- Remove the bracket -1- from the storage compartment and disconnect the connectors from the modules.

Fig 2: Identifying Bolts -Arrows- On Rearview Camera System Control Module -2- And Remove It From Bracket -1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- on the Rearview Camera System Control Module -J772- -2- and remove it from the bracket -1-.
