Overview - High Beam Assist, Humidity Sensor And Lane Assist

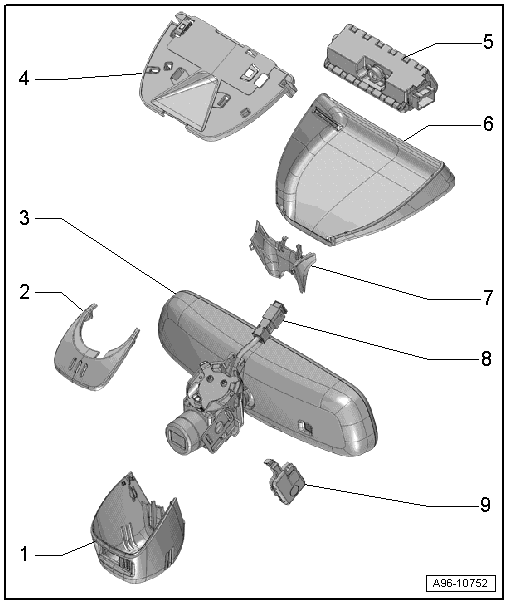

Fig 1: Overview Of High Beam Assist, Humidity Sensor And Lane Assist Components

Courtesy of AUDI OF AMERICA, LLC

1. Front Cover
   • For the housing for the Automatic High Beam Assist Control Module -J844- with Light Recognition Sensor -G399-
2. Upper Cover
   • For Automatic High Beam Assist Control Module -J844-
3. Interior Rearview Mirror
   • Vehicles with Automatic High Beam Assist Control Module -J844- with Light Recognition Sensor -G399-
   • Automatic High Beam Assist Control Module -J844- with Light Recognition Sensor -G399- integrated inside the interior rearview mirror. Cannot be replaced separately if faulty.
   • Replacing the interior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR .
4. Upper Cover
   • For Directional Stabilization Assistance Control Module -J759-
5. Directional Stabilization Assistance Control Module -J759-
   • Removing and installing. Refer to Directional Stabilization Assistance Control Module -J759- AND LENS SCREEN, REMOVING AND INSTALLING .
6. Lower Cover
   • For Directional Stabilization Assistance Control Module -J759-
7. Rear Cover
8. Central Connector
9. Humidity Sensor -G355-
   • There are different versions.
   • For vehicles from MY 2010, the Humidity Sensor -G355- is integrated in the Rain/Light Recognition Sensor -G397-

     Vehicles through MY 2009

   • Removing and installing. Refer to Additional Components for Control and Regulation .

     Vehicles from MY 2010

   • Removing and installing. Refer to Rain/Light Recognition Sensor -G397-, REMOVING AND INSTALLING, FROM MY 2010 .
